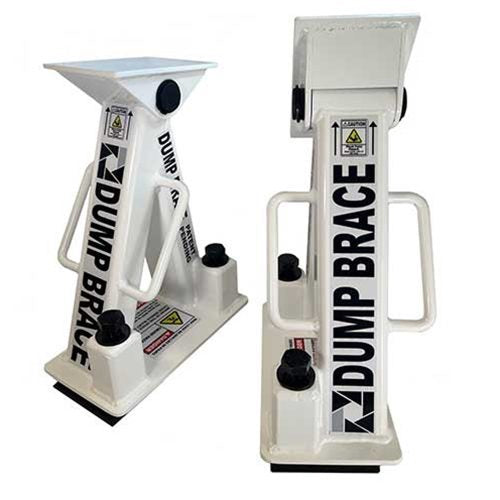

Super Duty Dump Brace® Dump Truck Bed Safety Locks - DB-3.5SD (pairs)
The Dump Stand® is a mechanical support device that clamps directly onto your truck’s frame, holding elevated dump beds securely in place during service work. Its high-grade, chain-free clamping mechanism allows one technician to install a pair in approximately 60 seconds, reducing setup time and limiting how long the raised bed remains unsupported.
Built for Heavy-Duty Dump Body Maintenance
Applications include:
-
Single-axle dump trucks
-
Double-axle dump trucks
-
Mining trucks
-
Dump trailers
-
Flat-tilt trailers
-
Forestry trucks
-
Chipper trucks
-
Rollback trucks
Chain-Free Design Built for Faster Setup
Patent-pending chain-free clamp design. High-grade bolts engage the clamping mechanism directly on the truck frame, reducing the need to wrestle with chains, hand rigging, or makeshift supports.
Improve Maintenance Efficiency
The defined one-brace-at-a-time process helps crews standardize setup and reduce preparation time before raised-bed maintenance.
Added Protection Beneath Raised Dump Beds
OSHA has identified unintended dump-body movement as a serious maintenance hazard. A properly installed mechanical support provides a physical backup before technicians perform inspection, service, or repair beneath a raised dump bed.
Key Product Details
- Sold as a pair and intended to be used as a pair.
- One-technician installation, completed one brace at a time.
- Equipped with high-grade bolts and a chain-free clamping mechanism.
- Fits standard frame flanges from 3½ to 5 inches wide.
- A wide range of compatible standard applications and custom capabilities.
- Provides independent mechanical support without relying solely on hydraulic pressure.
- Helps stabilize raised dump bodies during inspection, service, and repair.
- If you have questions about your truck or fleet configuration, give us a call.
Product Specifications
- Part Number: DB-3.5SD
- Maximum Capacity: 80,000 lbs. per pair
- Overall Height: 21 inches
- Overall Width: 6 inches
- Overall Length: 12.75 inches
- Weight: 40 lbs. each
- Material: American-made steel
- Frame Compatibility: 3.5- to 5-inch standard frame rails
- Design: Chain-free clamp system
How the DUMP BRACE® Pair Is Installed
Raise the bed to the desired height and turn off the engine. Using the handle, completely install and secure the first DUMP BRACE® safety lock before beginning installation of the second.
Repeat the same placement, sliding, and tightening process for the second brace. See the complete installation steps below.
A pair of Dump Braces® can be installed in 60 SECONDS!
Shipping and Ordering
In-stock units usually ship within 48 hours. Fleet, municipal, construction, mining, and commercial buyers may request volume pricing or purchase-order assistance.
How to Order
- Go to Checkout.
- Enter your email, then click Checkout.
- Enter your shipping information, then click Continue.
- Select your shipping method, then click Continue.
- If you select Pay by Cash, click Place Order. We will contact you with payment and shipment details.
- If you select Phone Orders - 217-965-3941, click Place Order, then call us directly at 217-965-3941.
Built for Real Trucks and Demanding Work Environments
See Truck Safety USA braces installed on working dump trucks, fleet vehicles, trailers, and emergency equipment. DUMP BRACE® safety locks offer a wide range of standard applications, as well as Custom Capabilities to suit your specific needs.
Municipal Dump Trucks Frame-mounted support for public works inspection, repair, and routine fleet maintenance.
Midwest Gravel & Paving Dump-body maintenance support for demanding paving and hauling operations.
City Public Works Department Fleet safety support for municipal dump trucks and routine service work.
Volunteer Fire Department DB-3.5SD installation on a fire department dump-body vehicle.
Grain Hauling Company Mechanical support for raised agricultural dump bodies during maintenance.
Mining and Construction Trucks Purpose-built support for high-capacity equipment and rugged job-site conditions.
Forestry and Chipper Trucks Mechanical support beneath raised bodies during maintenance and service work.
Fire Engines and Tilt-Cab Vehicles Stable mechanical support for technicians working beneath raised cabs.
CHAIN-FREE DUMP TRUCK BED SAFETY LOCK

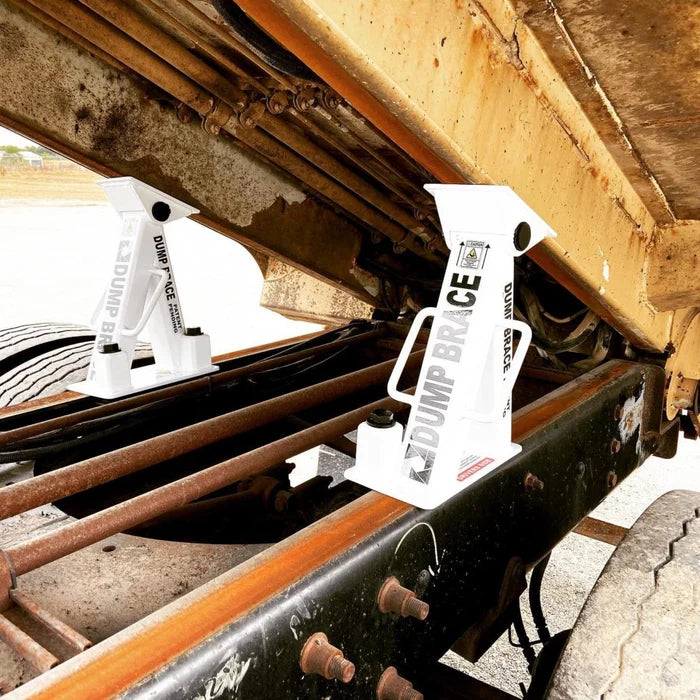

Clamps Directly to the Frame
Hydraulic pressure loss, shifting weight, and unstable props can put technicians at risk beneath a raised dump bed. The Super Duty Dump Brace® DB-3.5SD uses a heavy-duty clamping mechanism to secure directly to the truck frame and provide independent mechanical support.
Frame-specific clamping helps reduce lateral movement compared with unsecured or loosely positioned support methods. Its direct frame connection also provides a more visible and repeatable support point during raised-bed maintenance.
- Clamps directly to the frame, not the dump body
- Rated to support up to 80,000 lbs. per pair
- Chain-free installation with high-grade bolts
- Fits standard frame flanges from 3½ to 5 inches
SAFE SUPPORT IN LESS THAN 60 SECONDS
Install the DUMP BRACE® Pair One Brace at a Time
A DUMP BRACE® pair can be installed by one technician, one brace at a time, in approximately 60 seconds.
STEP ONE
Raise bed to desired height, turn off engine.
STEP TWO
Using the handle, set the first DUMP BRACE® safety lock onto the truck frame with the clamping mechanism beneath the flange.
STEP THREE
Slide the first DUMP BRACE® safety lock down the truck frame toward the raised bed frame.
STEP FOUR
Using a ratchet, tighten the two bolts securely to engage the clamping mechanism.
STEP FIVE
Using the handle, set the second DUMP BRACE® safety lock onto the truck frame with the clamping mechanism beneath the flange.
STEP SIX
Slide the second DUMP BRACE® safety lock down the truck frame toward the raised bed frame.
STEP SEVEN
Using a ratchet, tighten the two bolts securely to engage the clamping mechanism.
A Raised Dump Bed Can Become a Crush Hazard Without Warning
Unexpected bed movement often happens during routine maintenance, troubleshooting, and repairs. OSHA found that body props were missing or improperly used in most reviewed incidents, and in some cases, the props themselves failed.
WHY FLEETS CHOOSE THE DB-3.5SD
The Super Duty Dump Brace® combines chain-free frame clamping, heavy-duty paired capacity, broad application compatibility, and American-made construction for demanding fleet maintenance.
Chain-Free Frame Clamp
Two high-grade bolts engage the clamping mechanism directly on the frame flange, without chains, hand rigging, or loose blocks.
Fast, Repeatable Setup
The defined one-brace-at-a-time process helps fleets standardize installation across vehicles.
80,000-LB Pair Rating
Rated to 80,000 lbs. per pair for heavy-duty dump truck, trailer, mining, forestry, and hauling applications.
Standard and Custom Applications
DUMP BRACE® safety locks offer a wide range of standard applications, as well as Custom Capabilities to suit your specific needs.
Proudly Made in the USA
Created, sourced, and produced in the USA for demanding fleet-maintenance applications.
Fleet-Friendly Value
Purpose-built mechanical support at a practical fleet-equipment cost.
BUILT FOR MIXED DUMP TRUCK FLEETS
One Familiar System. More Applications.
The safety stand is designed for standard frame flanges from 3½ to 5 inches, with custom capabilities available for specific fleet requirements.
WHAT CREWS ARE SAYING
Real feedback from fleet managers and owner-operators across the country.
"Installs stupid fast. A million times safer than chains."
"Mandatory in our shop now. Peace of mind is worth every penny."
"Built like a tank. Exactly what we need on the job site."

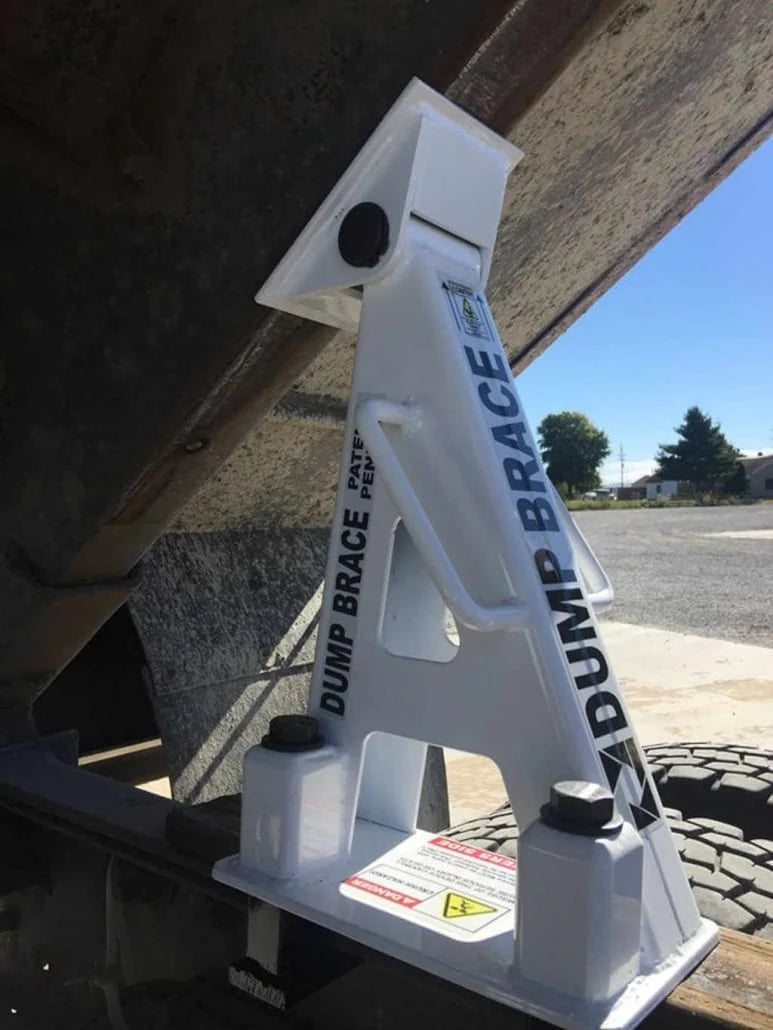

FREQUENTLY ASKED QUESTIONS
WILL THE DB-3.5SD FIT MY DUMP TRUCK?
The DB-3.5SD fits standard frame flanges from 3½ to 5 inches and offers a wide range of compatible standard applications. Applications include single- and double-axle dump trucks, mining trucks, dump trailers, flat-tilt trailers, forestry trucks, chipper trucks, and rollback trucks. Custom capabilities are also available to suit specific needs. If you are unsure about your configuration, give Truck Safety USA a call.
WHAT TYPES OF TRUCKS AND TRAILERS CAN USE IT?
The Dump Brace® safety stand can be used with single- and double-axle dump trucks, mining trucks, dump trailers, flat-tilt trailers, forestry trucks, chipper trucks, and rollback trucks. Custom capabilities may be available for specific fleet requirements.
IS THE DB-3.5SD SOLD INDIVIDUALLY OR AS A PAIR?
The DB-3.5SD comes as a pair and is intended to be installed and used as a pair. Each brace weighs approximately 40 pounds.
HOW QUICKLY CAN ONE TECHNICIAN INSTALL IT?
DOES THE DUMP BRACE® RELY ON CHAINS OR HYDRAULIC PRESSURE?
No chains are required. The DB-3.5SD uses a bolted clamping mechanism to provide independent mechanical support beneath a raised dump bed. Always follow the vehicle manufacturer's procedures and your employer's lockout and support requirements before working underneath.
WHAT IS THE DB-3.5SD WEIGHT CAPACITY?
Truck Safety USA offers a maximum capacity of 80,000 pounds per pair. Capacity does not replace proper fitment, installation, inspection, or compliance with the truck manufacturer's service procedures.
DO YOU OFFER FLEET PRICING AND PURCHASE-ORDER SUPPORT?
Yes. Use Request a Quote for volume pricing, compatibility assistance, and purchasing support for municipalities, public works departments, contractors, and commercial fleets.
HOW FAST DOES IT SHIP?
Orders usually ship by UPS Ground within 48 hours from Virden, Illinois, subject to product availability.
60-Second Install Video
A pair of Dump Braces® can be installed in LESS THAN 60 SECONDS!
Add YouTube/Vimeo embed URL in customizer
Put Mechanical Support in Place Before Anyone Works Underneath
Add a frame-mounted support system before raised-bed inspection, service, or repair. Contact Truck Safety USA to confirm DB-3.5SD compatibility with your equipment.
Questions about fitment or ordering? Call Truck Safety USA directly at 217-965-3941.
