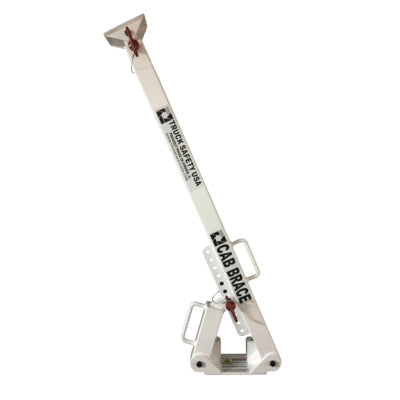

Cab Brace® CB-1 Tilt Cab Safety Brace for Fire Trucks
Secure Raised Fire Truck and Tilt Cabs During Maintenance
The Cab Brace® is a tilt cab safety brace designed to help secure raised fire truck cabs and cab-over-engine (COE) trucks during maintenance and inspections. Its patented clamping mechanism attaches directly to the truck frame, providing additional support independent of the vehicle's hydraulic system.
The Cab Brace® features adjustable height and angle settings to accommodate different truck chassis and raised cab configurations. Designed to support the underside of the elevated cab, it helps maintain access to the work area while technicians perform maintenance and inspections.
Key Cab Brace® Benefits
- Designed for fire apparatus, cab-over-engine trucks, and other tilt-cab vehicles
- Provides secondary mechanical support beneath a raised cab
- Adjustable height and angle for proper positioning
- Clamps directly to the truck frame member
- Two-bolt clamping mechanism tightened with a ratchet
- Compact design helps preserve under-cab workspace
- Installs in less than two minutes
Fast Single-Technician Setup
CAB BRACE® can be installed in LESS THAN 2 MINUTES in 3 simple steps!
A technician can position CAB BRACE® on the truck frame, adjust it to the raised cab, and tighten the two clamping bolts with a ratchet in under two minutes. See the complete installation steps below.
Product Specifications
- Part Number: DB-3.5SD
- Maximum Capacity: 80,000 lbs. per pair
- Overall Height: 21 inches
- Overall Width: 6 inches
- Overall Length: 12.75 inches
- Weight: 40 lbs. each
- Material: American-made steel
- Frame Compatibility: 3.5- to 5-inch standard frame rails
- Design: Chain-free clamp system
The patented apparatus includes an adjustable clamping mechanism designed to accommodate frame rails of varying thicknesses and an adjustable receiver that can engage a raised truck cab at different angles. Contact Truck Safety USA with your vehicle make, model, year, chassis, and cab configuration to confirm fitment before ordering.
Shipping
In-stock orders are dispatched via UPS Ground by the next business day. Delivery times vary based on the destination.
Real Installations on Fire Apparatus and Tilt-Cab Vehicles
Purpose-built secondary support can help reduce risk during raised-cab maintenance on cab-over-engine trucks and fire apparatus.
Volunteer Fire Department CB-1 installation on raised fire apparatus during maintenance.
Municipal Fire Fleet Mechanical cab support for routine inspections and service work.
Cab-Over-Engine Service Truck Adjustable support for raised COE cabs and under-cab access.
Emergency Response Vehicle Compact, frame-mounted support for demanding apparatus maintenance.
Commercial Tilt-Cab Fleet Frame-mounted support for technicians servicing raised truck cabs.
PATENTED FRAME-MOUNTED CAB SUPPORT
Clamps to the Chassis. Adjusts to the Raised Cab.
Generic props can shift, fit poorly, or obstruct the technician's work area. The Cab Brace® CB-1 creates a secure support point between the truck frame and elevated cab for fire apparatus, cab-over-engine trucks, and other tilt-cab vehicles. No chains. No improvised blocks. Purpose-built support for under-cab maintenance.
- Direct Frame Connection — The adjustable clamping mechanism secures beneath the truck-frame flange.
- Adjustable Cab Contact — Height and angle adjustments help position the receiver firmly against the raised cab frame.
- Built for Different Chassis Configurations — The patented design accommodates frame rails of varying thicknesses and can be positioned on either side of the cab.
- Visible Mechanical Support — Once positioned, the Cab Brace® CB-1 offers a visible, verifiable means of support for technicians working beneath a raised cab as part of safer maintenance practices.
No chains. No improvised blocks. A dedicated system for under-cab maintenance.
Installs in under two minutes.
RAISED-CAB SUPPORT IN LESS THAN 2 MINUTES
Install the Cab Brace® CB-1 between the truck chassis and the raised tilt cab before technicians begin under-cab maintenance.
STEP ONE
With the truck cab tilted in the open position, place CAB BRACE® on the truck frame member with the clamping mechanism beneath the flange.
STEP ONE
Adjust the height and angle to the appropriate positions. Move the CAB BRACE® toward the cab frame to wedge it between the truck frame and the open cab frame.
STEP ONE
Using a ratchet, tighten the two bolts to secure the clamping mechanism to the truck frame.
A Raised Tilt Cab Creates a Serious Crush Hazard
Working beneath a tilted cab introduces a recognized crush hazard during maintenance. If the cab shifts, the lifting system loses pressure, or a component releases unexpectedly, technicians can be exposed before they have time to react.
Pressure loss, component wear, or unintended movement can allow an elevated cab to shift during service.
In covered construction activities, OSHA requires elevated heavy equipment or components held aloft by lifting systems to be substantially blocked or supported before employees work underneath. Employers should also follow applicable general-industry requirements, vehicle-manufacturer instructions, and workplace procedures.
Even a mechanical support must be secured against accidental slipping or dislocation to provide dependable protection beneath a raised cab.
The Cab Brace® CB-1 connects the elevated cab to the truck chassis, creating a visible mechanical support point for cab-over-engine trucks and fire apparatus.
WHY THE CAB BRACE® CB-1 STANDS APART
The CB-1 is not a repurposed block or generic shop prop. Its patented design creates an adjustable connection between the truck chassis and raised cab for more controlled under-cab maintenance.
Patented Cab-Support Design
Protected by a U.S. Patent and designed specifically to support an elevated cab-over-engine truck cab.
Built for Fire Apparatus
Purpose-built for fire engines, cab-over-engine trucks, and other tilt-cab vehicles requiring regular access beneath the raised cab.
Compact in the Work Area
Its compact footprint helps preserve access around engines, pumps, and other under-cab service components.
Adaptable Support Geometry
A telescoping frame and pivoting cab receiver allow the CB-1 to adjust to different cab heights, angles, and chassis configurations.
Reversible Chassis Configuration
Its modular base can be configured for installation on either side of the cab, giving technicians greater flexibility around pumps, engines, and service components.
Award-Winning Safety Innovation
The Cab Brace® received the 2020 Work Truck Show Innovation Award in the Safety category for its purpose-built approach to supporting raised cab-over-engine vehicle cabs.
Purpose-built, patented secondary support for technicians working beneath raised fire-engine and tilt cabs.
BUILT FOR TILT-CAB FLEETS
One Cab-Support System for More of Your Fleet
Tilt-cab and cab-over-engine (COE) trucks are designed to provide efficient access to drivetrain components by allowing the cab to pivot forward. This design is common in delivery vehicles, refuse trucks, fire apparatus, and other vocational fleets.
WHAT CREWS ARE SAYING
Real feedback from fleet managers and owner-operators across the country.
"These Cab Braces are built like tanks. Heavy duty American steel. Exactly what we need working on the engines."
"Mandatory equipment in our shop now. The peace of mind knowing that cab isn't coming down on my mechanics is worth ten times the price."
"Installs stupid fast. A million times safer than makeshift props."
FREQUENTLY ASKED QUESTIONS
WILL THE CB-1 FIT MY FIRE ENGINE OR TILT-CAB TRUCK?
The Cab Brace® CB-1 is designed for fire apparatus, cab-over-engine trucks, and other vehicles with raised tilt cabs. Because chassis rails, cab structures, and service-access areas vary, provide your vehicle's make, model, year, chassis, and cab configuration before ordering.
WHAT TYPES OF VEHICLES CAN USE THE CAB BRACE®?
The CB-1 is intended for fire engines, cab-over-engine trucks, and other tilt-cab vocational vehicles. Its patented design was developed specifically to support an elevated COE truck cab during maintenance.
HOW QUICKLY CAN A TECHNICIAN INSTALL THE CB-1?
The Cab Brace® installs in less than two minutes. A technician can position the brace on the chassis, adjust it to the raised cab, and tighten the two clamping bolts with a ratchet.
HOW DOES THE CAB BRACE® HELP IF HYDRAULIC PRESSURE IS LOST?
The CB-1 provides a physical, load-bearing secondary support between the truck chassis and raised cab. This reduces reliance on the cab's hydraulic lifting system alone while technicians inspect or service components underneath.
CAN THE CB-1 ADJUST TO DIFFERENT FRAME RAILS AND CAB ANGLES?
Yes. The patented clamp accommodates chassis rails of varying thicknesses, while the adjustable frame and pivoting receiver allow the brace to engage raised cabs at different heights and angles. The base can also be configured for use on either side of the cab.
DOES THE CB-1 REPLACE THE FACTORY CAB LOCK OR SERVICE PROCEDURE?
No. The Cab Brace® is a secondary mechanical support and should be used with the vehicle manufacturer's instructions, workplace procedures, and required lockout controls. OSHA requires elevated equipment and components to be properly blocked or supported before employees work underneath them in covered construction activities.
IS THE CAB BRACE® SOLD INDIVIDUALLY OR AS A PAIR?
The Cab Brace® CB-1 is sold individually for $1,249 each. Confirm how many braces are required for your vehicles and maintenance procedures before placing a fleet order.
DO YOU OFFER FLEET QUOTES?
Contact Truck Safety USA for fleet fitment assistance and an equipment quote.
60-Second Install Video
CAB BRACE® can be installed in LESS THAN 2 MINUTES in 3 simple steps!
READY TO ADD UNDER-CAB SUPPORT?
Confirm Fitment for Your Fire Apparatus or Tilt-Cab Vehicle
Contact Truck Safety USA with the vehicle make, model, year, chassis, and cab configuration to confirm whether the CB-1 fits your equipment.
Questions about fitment or ordering? Call Truck Safety USA directly at 217-965-3941.
